Wall Top Electric Fence
The electric fence which is installed on the top of the wall.
Poles can be of below manner as per requirement:
Electric fence should not be installed on top of wall if the wall is lower than 1.5m.
When there is no wall for fixing fence post then free stand configuration for electric fence is used. In this type of configuration fence post are grouted in the ground. A free stand fence is generally of 2.4m height from the ground level and runs parallel to chain mesh passive fence.
e) Grounding : Proper grounding is critical for an electric fence to function effectively. Grounding rods are buried in the ground near the fence, providing a path for the electric current to complete its circuit. This ensures a consistent and reliable electrical pulse throughout the fence.
Features:
Specifications:
Enclosure size | 285(L) x 212(W) x 120(D)mm |
Weight | 3.1kg excluding battery (7AH) |
IP rating | IPx4 |
Operating temperature | -10°C to 50°C |
Operating humidity | < 80% non-condensing |
Electrical supply voltage | 240V |
Typical power consumption | 18VA (normal operating conditions) |
Standby Time | 24hrs (fully charged battery) |
Energy output | 3.0 Joule (500 Ohms load) |
Open circuit voltage | 9000V |
Features:
Specifications:
Enclosure size | L370 x W232 x D145mm |
Weight | 4.8kg excluding battery (7AH) |
IP rating | IPx4 |
Operating temperature | -10°C to 50°C |
Operating humidity | < 80% non-condensing |
Electrical supply voltage | 240V |
Typical power consumption | 25VA (normal operating conditions) |
Standby Time | 24hrs (fully charged battery) |
Energy output | 7.6 Joule (500 Ohms load) |
Open circuit voltage | 9600V |
Features:
Specifications:
Enclosure size | 400(L) x 270(W) x 125(D)mm |
Weight | 5.7kg excluding battery (7AH) |
IP rating | IPx4 |
Operating temperature | -10°C to 50°C |
Operating humidity | < 80% non-condensing |
Electrical supply voltage | 240V |
Typical power consumption | 18VA (normal operating conditions) |
Standby Time | 24hrs (fully charged battery) |
Energy output | 3.7 Joule per zone (500 Ohms load) |
Open circuit voltage | 9000V |
Features:
Specifications:
Enclosure size | 285(L) x 212(W) x 120(D)mm |
Weight | 3.1kg excluding battery (7AH) |
IP rating | IPx4 |
Operating temperature | -10°C to 50°C |
Operating humidity | < 80% non-condensing |
Electrical supply voltage | 240V |
Typical power consumption | 18VA (normal operating conditions) |
Standby Time | 24hrs (fully charged battery) |
Energy output | 3.7 Joule per zone (500 Ohms load) |
Open circuit voltage | 8000V |
Features:
Specifications:
Enclosure size | L370 x W232 x D145mm |
Weight | 4.8kg excluding battery (7AH) |
IP rating | IPx4 |
Operating temperature | -10°C to 50°C |
Operating humidity | < 80% non-condensing |
Electrical supply voltage | 240V |
Typical power consumption | 27VA (normal operating conditions) |
Standby Time | 6hrs (fully charged battery) |
Energy output | 7.6 Joule (500 Ohms load) |
Open circuit voltage | 9300V |
Features:
Specifications:
Enclosure size | 285(L) x 212(W) x 120(D)mm |
Weight | 3.1kg excluding battery (7AH) |
IP rating | IPx4 |
Operating temperature | -10°C to 50°C |
Operating humidity | < 80% non-condensing |
Electrical supply voltage | 240V |
Typical power consumption | 18VA (normal operating conditions) |
Standby Time | 24hrs (fully charged battery) |
Energy output | 3.7 Joule per zone (500 Ohms load) |
Open circuit voltage | 8000V |
Features:
Specifications:
Material | UV Stabilised 3 Core Screened Cable | |
Roll size | 200m | |
Diameter | 0.22mm | |
Stock Code | Description | |
CB-TWC/200 | 3 Core Mylar Screened Cable |
Features:
Specifications:
Material | PVC outer sleeve |
Roll size | 100m |
Colour | White |
Stock Code | Description |
---|---|
CB-4CWS | 4 Core Comms Cable – Stranded |
CB-6CWS | 6 Core Comms Cable – Stranded |
CB-8CWS | 8 Core Comms Cable – Stranded |
Features:
Specifications:
Material | Aluminium |
Roll size | 30m |
Type | 3 Core Stranded Core |
Colour | Black |
Conductors | 3 core HT cable – 1.6mm stranded inner conductors |
Stock Code | Description |
---|---|
EH-3AS030 | 3 core Aluminium HT Cable (A-series) 30m |
EH-3AS100 | 3 core Aluminium HT Cable (A-series) 100m |
EH-AS100 | Solid Aluminium HT Cable (A-series) 100m |
EH-AS200 | Solid Aluminium HT Cable (A-series) 200m |
EH-AS500 | Solid Aluminium HT Cable (A-series) 500m |
EH-AS1000 | Solid Aluminium HT Cable (A-series) 1000m |
Features:
Specifications:
Material | UV Stabilised, double insulated, Tinned copper stranded wires |
Roll size | 30m |
Type | 3 Core |
Colour | Black |
Features:
Specifications:
Material | UV Stabilised, double insulated, Tinned copper stranded wires |
Roll size | 30m |
Type | 3 Core |
Colour | Black |
Stock Code | Description |
---|---|
EH-3BS030 | 3 Core Tinned Copper HT Cable (S-series) 30m – Slimline Black |
EH-3BS100 | 3 Core Tinned Copper HT Cable (S-series) 100m – Slimline Black |
EH-4BS100 | 4 Core Tinned Copper HT Cable (S-series) 100m – Slimline Black |
EH-5BS100 | 5 Core Tinned Copper HT Cable (S-series) 100m – Slimline Black |
EH-BS030S | Single Core Tinned Copper HT Cable (S-series) 30m – Slimline Black |
EH-BS100S | Single Core Tinned Copper HT Cable (S-series) 100m – Slimline Black |
EH-BS200S | Single Core Tinned Copper HT Cable (S-series) 200m – Slimline Black |
EH-BS500S | Single Core Tinned Copper HT Cable (S-series) 500m – Slimline Black |
EH-BS1000S | Single Core Tinned Copper HT Cable (S-series) 1000m – Slimline Black |
EH-WS030S | Single Core Tinned Copper HT Cable (S-series) 30m – Slimline White |
EH-WS100S | Single Core Tinned Copper HT Cable (S-series) 100m – Slimline White |
EH-WS200S | Single Core Tinned Copper HT Cable (S-series) 200m – Slimline White |
Features:
Specifications:
Material | UV stabilised, double insulated, 316 stainless steel stranded wires |
Roll size | 100m |
Type | Stranded |
Colour | Black |
Features:
Specifications:
Material | UV stabilised plastic |
Mounting | 4.0mm Hole Diameter |
Colour | Black |
Operating temperature | -40 to 80°C |
Operating voltage | 0 – 12KV |
Recycling | SPI 2 |
Features:
Specifications:
Material | UV stabilised plastic |
Mounting | 6.2mm Hole Diameter |
Colour | Black |
Operating temperature | -40 to 80°C |
Operating voltage | 0 – 12KV |
Recycling | SPI 2 |
Features:
Specifications:
Material | UV stabilised plastic |
Mounting | 5mm Hole Diameter |
Colour | Black |
Operating temperature | -40 to 80°C |
Operating voltage | 0 – 12KV |
Recycling | SPI 2 |
Features:
Specifications:
Material | UV stabilised plastic |
Mounting | 10mm Hole Diameter |
Colour | Black |
Operating temperature | -40 to 80°C |
Operating voltage | 0 – 12KV |
Recycling | SPI 2 |
Features:
Specifications:
Material | UV stabilised plastic |
Mounting | 10mm Hole Diameter |
Colour | Black |
Operating temperature | -40 to 80°C |
Operating voltage | 0 – 12KV |
Recycling | SPI 2 |
Features:
Specifications:
Finish | XL galvanised |
Features:
Specifications:
Material | UV stabilised plastic |
Mounting | 6.2mm Hole Diameter |
Colour | Black |
Operating temperature | -40 to 80°C |
Operating voltage | 0 – 12KV |
Recycling | SPI 2 |
Features:
Specifications:
Material | Flat bar |
Type | Angled |
Lengths | 5 wires (730mm) |
Finish | Hot Dip Galvanised (HDG) |
Associated insulator | Flat Bar Insulator |
Packaging | 10 in a sleeve |

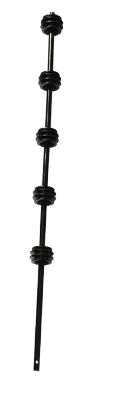

Features:
Specifications:
Material | Round bar |
Lengths | 5 wires (600mm) |
Finish | Hot Dip Galvanised (HDG) |
Associated insulator | Round bar insulator |
Packaging | 10 in a sleeve |
Features:
Specifications:
Material | Square tube |
Dimensions | 20 x 20 x 1.6mm |
Type | Angled |
Lengths | 6 wires (995mm) |
Finish | Powder Coated (PC) |
Associated insulator | Flat Bar Insulator |
Packaging | 10 in a sleeve |
Features:
Specifications:
Material | Square tube |
Dimensions | 20 x 20 x 1.6mm |
Lengths | 6 wires (995mm) |
Finish | Hot Dip Galvanised (HDG) |
Type | Angled |
Associated insulator | Jurassic Non-Slotted (MTO) |
Packaging | 10 in a sleeve |
Features:
Specifications:
Material | Square tube |
Dimensions | 20 x 20 x 1.6mm (6 wire) |
Type | Top Angled |
Finish | Hot Dip Galvanised (HDG) |
Lengths | 6 wires (995mm) |
Associated insulator | Jurassic slotted insulator |
Packaging | 10 in a sleeve |
Features:
Specifications:
Material | Square tube |
Dimensions | 20 x 20 x 1.6mm |
Lengths | 6 wires (995mm) |
Finish | Hot Dip Galvanised (HDG) |
Associated insulator | Shield insulator |
Packaging | 10 in a sleeve |
Features:
Specifications:
Material | Square tube |
Dimensions | 20 x 20 x 1.6mm |
Finish | Black Powder Coated (PC) |
Lengths | 8 wires (760mm) |
Associated insulator | Shield insulator |
Features:
Specifications:
Material | Square tube |
Type | Straight |
Dimensions | 20 x 20 x 1.6mm |
Finish | Hot Dip Galvanised (HDG) |
Lengths | 8 wires (895mm) |
Associated insulator | Shield insulator |
Features:
Specifications:
Material | Flat bar |
Finish | Hot Dip Galvanised (HDG) |
Lengths | 6 wires (600mm) |
Associated insulator | Flat Bar Insulator |
Packaging | 25 in a box |
Features:
Specifications:
Material | Aluminium alloy |
Construction | Solid |
Tensile breaking strength | 1.6mm: 60 – 70kgs |
Resistance | 1.6mm: 27 Ohms/km |
Elongation | 10 – 11% |
Features:
Specifications:
Material | Aluminium alloy |
Construction | Stranded |
Elongation | 10 – 11% |
Resistance | 1.6mm: 27 Ohms/km |
Features:
Specifications:
Material | XL Galvanised Steel |
Construction | Stranded |
Tensile breaking strength | 1.6mm: 60kg |
Resistance | 1.6mm: 100 Ohms/km |
Features:
Specifications:
Material | 304 Stainless steel |
Construction | Stranded |
Tensile breaking strength | 110kg |
Safe working load | 20%: 22kg |
Features:
Specifications:
Material | 304 Stainless steel |
Construction | Solid |
Tensile Strength | AISI 304 SS, Ultimate – 510 MPa (50kg/mm2) |
Elongation | AISI 304 SS – 70% at Break |
Features
There are a number of products by Optex India in their REDWALL range for laser fencing. The main features of these products are as follows:
LFS is used to detect intrusion within defined boundaries. It is an active optical fencing system, which uses invisible laser radiation. Interception of radiation due to intrusion is sensed by optical receiver to generate alarm signal. An imaging device can also be integrated with this system for intrusion recording.
Features:
