Structured cabling & accessories Copper Structured Cabling
Unshielded Distribution Module Wall Mount Panel, Cat 6, 12 port, Black
Product Classification Product Type RJ45 patch panel
General Specifications
ANSI/TIA Category – 6
Cable Type – Unshielded
Color – Black
Conductor Type – Solid | Stranded
Modules, quantity – 2
Panel Style – Straight
Rack Type – EIA 19 in
Termination Type – IDC
Total Ports, quantity – 12
Wiring – T568A | T568B
Dimensions
Height 254 mm | 10 in
Width 66.04 mm | 2.6 in
Depth 91.44 mm | 3.6 in
Compatible Diameter Over Dielectric, maximum 1.168 mm | 0.046 in Compatible Diameter Over Dielectric, minimum 0.762 mm | 0.03 in Compatible Conductor Gauge, solid 22 AWG | 24 AWG Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
Free Standing Electric Fence:
Product Classification
Product Type – Copper patch panel
General Specifications
ANSI/TIA Category – 5e | 6 | 6A
Color – Black
Modules, quantity – 0
Panel Style – Straight
Rack Type – EIA 19 in
Rack Units – 1
Total Ports, quantity – 24
Dimensions
Height 44.45 mm | 1.75 in
Width 482.6 mm | 19 in
Depth, with cable management 220.98 mm | 8.7 in
Compatible Diameter Over Dielectric, maximum 1.168 mm | 0.046 in Compatible Diameter Over Dielectric, minimum 0.762 mm | 0.03 in
Unshielded Distribution Module Wall Mount Panel, Cat 6, 12 port, Black
Product Classification
Product Type RJ45 patch panel
General Specifications
ANSI/TIA Category – 6
Cable Type – Unshielded
Color – Black
Conductor Type – Solid | Stranded
Modules, quantity – 2
Panel Style – Straight
Rack Type – EIA 19 in
Termination Type – IDC
Total Ports, quantity – 12
Wiring – T568A | T568B
Dimensions
Height 254 mm | 10 in
Width 66.04 mm | 2.6 in
Depth 91.44 mm | 3.6 in
Compatible Diameter Over Dielectric, maximum 1.168 mm | 0.046 in Compatible Diameter Over Dielectric, minimum 0.762 mm | 0.03 in Compatible Conductor Gauge, solid 22 AWG | 24 AWG Compatible Conductor Gauge, stranded 22 AWG | 24 AWG
Unshielded Panel Frame, 1U, Black
Product Classification
Product Type – Copper patch panel
General Specifications
ANSI/TIA Category – 5e | 6 | 6A
Color – Black
Modules, quantity – 0
Panel Style – Straight
Rack Type – EIA 19 in
Rack Units – 1
Total Ports, quantity – 24
Dimensions
Height 44.45 mm | 1.75 in
Width 482.6 mm | 19 in
Depth, with cable management 220.98 mm | 8.7 in
Compatible Diameter Over Dielectric, maximum 1.168 mm | 0.046 in Compatible Diameter Over Dielectric, minimum 0.762 mm | 0.03 in
Copper Structured Cabling Accessories
110Connect XC System Jumper Trough, with legs
Product Classification
Product Type Trough
Product Series 110 Series
General Specifications
Colour – Ivory
Dimensions
Height 66.04 mm | 2.6 in
Width 271.78 mm | 10.7 in
Environmental Specifications
MPS Cap Kit with Strain Relief, White (48 ea/pkg)
Product Classification
Product Type – Cap
Product Series – GigaSPEED Xpress®
General Specifications
ANSI/TIA Category – 3 | 5e
Color – White
Material Specifications
Material Type – High-impact, flame retardant, thermoplastic
Environmental Specifications
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard UL | cUL
110Connect XC System Jumper Trough, with legs
Product Classification
Product Type Trough
Product Series 110 Series
General Specifications
Color – Ivory
Dimensions
Height 66.04 mm | 2.6 in
Width 271.78 mm | 10.7 in
Environmental SpecificationsFlammability Rating – UL 94 V-0
110Connect XC Jumper Trough without Legs
Product Classification
Product Type Trough
Product Series 110 Series
General Specifications
Color – Ivory
Dimensions
Height 66.548 mm | 2.62 in
Width 214.376 mm | 8.44 in
Environmental Specifications
Flammability Rating – UL 94 V-0
Universal Label Holder Kit – DM panels
Product Classification
Product Type – Termination manager
General Specifications
Color – Transparent
Environmental Specifications
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Termination Manager Kit for Unshielded Distribution Module Panel
Product Classification
Product Type – Termination manager
General Specifications
ANSI/TIA Category – 5 | 5e | 6 | 6A
Color – White
Dimensions
Height 12.7 mm | 0.5 in
Width 14.732 mm | 0.58 in
Depth 9.144 mm | 0.36 in
Material Specifications
Material Type – High-impact, flame retardant, thermoplastic
Environmental Specifications
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Flammability Rating UL 94 V-0 Safety Standard UL | cUL
RJ45 JacksCategory
SL-Series Modular Jack, RJ45, Cat5 e Unshielded
General Specifications
ANSI/TIA Category – 5e
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – SL Series faceplates and panels
Outlet Type – Standard
Termination Punchdowns, minimum – 200 times
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
Wiring – T568A | T568B
KJ-Series Modular Jack, RJ45, Cat5e Unshielded
General Specifications
ANSI/TIA Category – 5e
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – Hubbell® faceplates | Leviton® faceplates | Panduit® faceplates
Outlet Type – Keystone
Termination Punchdowns, minimum – 200 times
Termination Tool – 110 Punchdown tool | SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
Wiring – T568A | T568B
5e Jacks
EHR Series Modular Jack, 8-position, RJ45, category 5e
General Specifications
ANSI/TIA Category – 5e
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – EHR Series faceplates and panels
Outlet Type – Standard
Termination Tool – 110 Punchdown tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
Wiring – T568A | T568B
EHR-Series Modular Jack, RJ45, Cat5e Unshielded, with Shutter
General Specifications
ANSI/TIA Category – 5e
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – EHR Series faceplates and panels
Outlet Type – Standard
Termination Tool – 110 Punchdown tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
Wiring – T568A | T568B
SL-Series Modular Jack, RJ45, Cat6 Unshielded
General Specifications
ANSI/TIA Category – 6
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – SL Series faceplates and panels
Outlet Feature Inverted jack face
Outlet Type – Standard
Termination Punchdowns, minimum 200 times
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring – T568A | T568B
Category 6 Jacks
SL-Series Modular Jack, RJ45, Cat6 Unshielded, with Dust Cover
General Specifications
ANSI/TIA Category – 6
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – SL Series faceplates and panels
Outlet Type – Standard
Termination Punchdowns, minimum – 200 times
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring – T568A | T568B
SX-Series Modular Jack, RJ45, Cat6 Unshielded, with Shutter
General Specifications
ANSI/TIA Category – 6
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Outlet Type – Standard
Termination Tool – 110 Punchdown tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring – T568A | T568B
SL FMK Series Modular Jack
General Specifications
ANSI/TIA Category – 6
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – Clipsal/HPM faceplates
Outlet Feature – Inverted jack face
Outlet Type – Standard
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring – T568A | T568B
SL-Series FMK Modular Jack, RJ45, Cat6, Unshielded, with Dust Cover, ProWhite
General Specifications
ANSI/TIA Category – 6
Cable Type – Unshielded
Color – Pro white
Conductor Type – Solid | Stranded
Integrated Dust Cover Type Hinged
Mounting – Clipsal/HPM faceplates
Outlet Feature – Inverted jack face
Outlet Type – Standard
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E
Wiring – T568A | T568B
KJ-Series Modular Jack, RJ45, Cat6 Unshielded, Black
General Specifications
ANSI/TIA Category – 6
Application For use with the CPP-UMOD-KJ-1U-24 panel 760254673
Cable Type – Unshielded
Color – Black
Conductor Type – Solid | Stranded
Integrated Dust Cover Type None
Mounting Note Color matches with KJ-style Black Faceplates and Surface Mount Boxes Outlet Feature – Inverted jack face
Outlet Type – Keystone
Termination Tool 110 Punchdown tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E
Wiring – T568A | T568B
CAT 6A
KJ-Series Modular Jack, RJ45, Cat6A Unshielded, Blue
General Specifications
ANSI/TIA Category – 6A
Cable Type – Unshielded
Color – Blue
Conductor Type – Solid | Stranded
Integrated Dust Cover Type – None
Mounting – Keystone faceplates and panels
Outlet Type – Standard
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
Wiring – T568A | T568B
SL FMK Series Modular Jack, Cat6A
General Specifications
ANSI/TIA Category – 6A
Cable Type – Unshielded
Conductor Type – Solid | Stranded
Mounting – Clipsal/HPM faceplates
Outlet Type – Standard
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
Wiring – T568A | T568B
SL-Series Modular Jack, RJ45, Cat6A Shielded, with Dust Cover
General Specifications
ANSI/TIA Category – 6A
Cable Type – Shielded
Conductor Type – Solid | Stranded
Mounting – SL Series faceplates and panels
Outlet Type – Standard
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
Wiring – T568A | T568B
SL-Series Modular Jack, RJ45, Cat6A Shielded
General Specifications
ANSI/TIA Category – 6A
Cable Type – Shielded
Conductor Type – Solid | Stranded
Mounting – SL Series faceplates and panels
Outlet Type – Standard
Termination Tool – SL Termination tool
Termination Type – IDC
Transmission Standards – ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
Wiring – T568A | T568B
Twisted Pair Patch Cords
Cat 6 U/UTP RJ45 A-wired Patch Cord, Non-Plenum
General Specifications
ANSI/TIA Category – 6
Cable Type U/UTP (unshielded)
Conductor Type Stranded
Interface, Connector A – RJ45 plug
Interface Feature, connector A – Standard – Interface, Connector B RJ45 plug Interface Feature, connector B Standard
Jacket Color -Black | Blue | Green | Orange | Red | Slate | White | Yellow Pairs, quantity – 4
Transmission Standards – IEEE 802.3bt Type 4 | ISO/IEC 11801 Class E
Wiring – T568A
Cat 6 U/UTP RJ45 Patch Cord, LSZH
General Specifications
ANSI/TIA Category – 6
Cable Type U/UTP (unshielded)
Conductor Type Stranded
Interface, Connector A – RJ45 plug
Interface Feature, connector A – Standard
Interface, Connector B RJ45 plug
Interface Feature, connector B – Standard
Jacket Color -Black | Blue | Green | Orange | Red | Slate | White | Yellow Pairs, quantity – 4
Separator Type – Bisector
Transmission Standards – ANSI/TIA-568.2-D | IEEE 802.3bt Type 4 | ISO/IEC 11801 Class E
Wiring – T568A
RJ45 Patch Cord, category 6, yellow, 10 ft
General Specifications
ANSI/TIA Category – 6
Cable Type – U/UTP (unshielded)
Conductor Type – Stranded
Interface, Connector A – RJ45 plug
Interface, Connector B – RJ45 plug
Jacket Color – Yellow
Pairs, quantity – 4
NCC Cat 6 UTP, Riser, Plug-to-Plug, Class Dca
General Specifications
ANSI/TIA Category – 6
Cable Type – U/UTP (unshielded)
Conductor Type – Solid
Interface, Connector A – MP-6AU-PLUG
Interface Feature, connector A – Standard
Interface, Connector B – MP-6AU-PLUG
Interface Feature, connector B – Standard
Jacket Color – Blue | Slate | White
Pairs, quantity – 4
Transmission Standards – IEEE 802.3bt Type 4
Wiring – T568B
NCC Cat 6 UTP, Plug-to-Plug, Class B2ca
General Specifications
ANSI/TIA Category – 6
Cable Type – U/UTP (unshielded)
Conductor Type – Solid
Interface, Connector A – RJ45 plug
Interface Feature, connector A – Standard
Interface, Connector B – RJ45 plug
Interface Feature, connector B – Standard
Jacket Color – Blue | White
Pairs, quantity – 4
Transmission Standards – IEEE 802.3bt Type 4
Wiring – T568B
Twisted Pair Cables

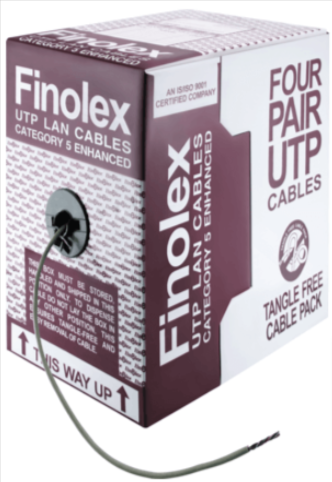

5e Copper Cable
General Specifications
Product Number – 1061F
ANSI/TIA Category – 5e
Cable Type – U/UTP (unshielded)
Conductor Type, singles – Solid
Copper Cable, category 5e, 4 pair, SF/UTP, CM, 24 AWG solid, 1000 ft,gray
General Specifications
ANSI/TIA Category – 5e
Cable Component Type – Horizontal
Cable Type SF/UTP (shielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Color – Gray
Pairs, quantity – 4
Transmission Standards ANSI/TIA-568.2-D
Copper Cable, category 5e, 4 pair, U/UTP, 24 AWG, PVC, 200 m, white
General Specifications
ANSI/TIA Category – 6
Cable Component Type – Horizontal
Cable Type – U/UTP (unshielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Colour – Gray
Pairs, quantity – 4
Transmission Standards – ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Copper Cable, category 6, outdoor, anti-rodent, UTP, 4-pair, 23 AWG,
General Specifications
ANSI/TIA Category – 6
Cable Component Type – Horizontal
Cable Type – U/UTP (unshielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Color – black
Pairs, quantity – 4
Transmission Standards – ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Category 6 Cables
CS44P-IO Indoor/Outdoor Category 6A U/UTP Cable, plenum, outdoor rated, white jacket, 4 pair count, 1000 ft (305 m) length reel
General Specifications
ANSI/TIA Category – 6A
Cable Component Type – Horizontal
Cable Type – U/UTP (unshielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Colour – white
Pairs, quantity – 4
Separator Type – Isolator
Transmission Standards – ANSI/TIA-568-D.2
CS44Z1 Cable, category 6A, 4 pair, F/UTP, LSZH, 23 AWG, 1000 ft, light pink
General Specifications
ANSI/TIA Category – 6 A
Cable Component Type – Horizontal
Cable Type – U/UTP (shielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Color – pink
Pairs, quantity – 4
Transmission Standards – ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class EA
Category 7 Cables
CS54ZB Category 7 S/FTP Cable, low smoke zero halogen, orange jacket, 4 pair count, 3280 ft (1000 m) length, reel
General Specifications
ANSI/TIA Category – 7
Cable Component Type – Horizontal
Cable Type – S/UTP (unshielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Colour – orange
Note – All electrical transmission tests include swept frequency measurements Pairs, quantity – 4
Transmission Standards – CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F
CS54ZB Category 7 S/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 3280 ft (1000 m) length, reel
General Specifications
ANSI/TIA Category – 7
Cable Component Type – Horizontal
Cable Type – S/UTP (shielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Color – white
Pairs, quantity – 4
Transmission Standards – ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class EA
Category 7A Cables
CS67ZC Category 7A S/FTP Cable, low smoke zero halogen, white jacket, 8 pair count, 2 x 4 pair cables in a duplex style configuration,1640 ft (500 m) length, reel
General Specifications
ANSI/TIA Category – 7A
Cable Component Type – Horizontal
Cable Type – S/UTP (shielded)
Conductor Type, singles – Solid
Conductors, quantity – 16
Jacket Colour – white
Pairs, quantity – 8
Transmission Standards CENELEC EN 50288-9-1 | IEC 61156-7F
CS67ZB Category 7A S/FTP Cable, low smoke zero halogen, orange jacket, 4 pair count, 3280 ft (1000 m) length, reel
General Specifications
ANSI/TIA Category – 7
Cable Component Type – Horizontal
Cable Type – S/UTP (shielded)
Conductor Type, singles – Solid
Conductors, quantity – 8
Jacket Color – orange
Pairs, quantity – 4
Transmission Standards – CENELEC EN 50288-9-1 | IEC 61156-7
Fiber Structured Cabling Fiber Panels

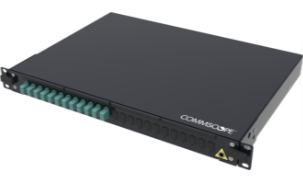

FMS Fiber Optic Termination/Splice Panels
General Specifications
The FMS is mechanical shelf suitable for rack mounting fiber management system. It is used for both splicing and patching. Splicing primary coated fiber from loose tube cable to fiber pigtail on a single element base and connector patching to pigtails with a capacity ranging from 12 to 96 splices and connections. It is a high-density multifunctional unit designed for particular applications and environments. This unit uses Splicing trays as per requirement. The special feature of this FMS is that it is having the facility to store the extra length of the fiber loose tube. The unit can be mounted on both 19” as well as 21” Networking racks.

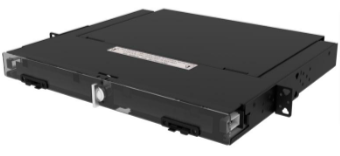

TFP Fiber Termination Panel, black
General Specifications
TFP panels are best suited for rack or cabinet mounting in Horizontal and Equipment
Distribution Areas
Modularity, functionality and density make the TFP ideal for mounting in close proximity to
servers, switches, routers and SANs
Field-installable vertical cable guides on either side of the TFP panel provide bend radius
protection and management of fibers exiting
TFP panels are equipped with adjustable mounting brackets to provide either 19- or 23-inch rack
or cabinet mounting (EIA or WECO) as well as 4- or 5-inch recess mounting
MPO Modules
RMG-MODULES 12/24 fiber
General Specifications
Modular design for maximum flexibility Plug and play solution allows for reduced installation skill requirments and greatly improves speed of installation Offered with LC (up to 24 ports) and SC (u to 12 ports) front interface and MPO rear interface
TFP-MODULES
General Specifications
Modular design for maximum flexibility Plug and play solution allows for reduced installation skill requirments and greatly improves speed of installation Offered with LC (up to 24 ports) and SC (u to 12 ports) front interface and MPO rear interface
Fiber Optic XG series modules
General Specifications
- Modular design for maximum flexibility
- Plug and play solution allows for reduced installation skill requirments and greatly improves
- speed of installation
- Offered with LC (up to 24 ports) and SC (u to 12 ports) front interface and MPO rear interface
Fiber Cable Assemblies Fiber Patch Cords
Fiber Optic Patch Cord, LSZH, Simplex, 0.9mm, Singlemode, LC/UPC to LC/UPC, yellow
General Specifications
Connector A, quantity – 1
Color, boot A – Blue
Color, connector A – Blue
Connector B, quantity – 1
Color, boot B – Blue
Color, connector B – Blue
Interface, Connector A – LC/UPC
Interface, Connector B – LC/UPC
Jacket Color – Yellow
Total Fibers, quantity – 1

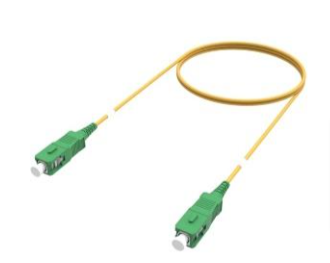

Armored Jumper G657.A2 SC/APC to SC/APC Simplex, 3.0mm LSZH, Yellow
General Specifications
Connector A, quantity – 1
Color, boot A – Green
Color, connector A – Green
Connector B, quantity – 1
Color, boot B – Green
Color, connector B – Green
Construction Type – Armored
Interface, Connector A – SC/APC
Interface, Connector B – SC/APC
Jacket Color – Yellow
Total Fibers, quantity – 1
Armored Jumper G657.A2 SC/APC to SC/APC Duplex, 3.0mm LSZH,Yellow
General Specifications
Connector A, quantity – 2
Color, boot A – Green
Color, connector A – Green
Connector B, quantity – 2
Color, boot B – Green
Color, connector B – Green
Construction Type – Armored
Interface, Connector A – SC/APC
Interface, Connector B – SC/APC
Jacket Color – Yellow
Polarity – Pairs, flipped
Total Fibers, quantity – 1
Armored Jumper G657.A2 LC/UPC to LC/UPC Duplex, 3.0mm LSZH, Yellow
General Specifications
Connector A, quantity – 2
Color, boot A – Blue
Color, connector A – Blue
Connector B, quantity – 2
Color, boot B – Blue
Color, connector B – Blue
Construction Type – Armored
Interface, Connector A – LC/UPC
Interface, Connector B – LC/UPC
Jacket Color – Yellow
Polarity – Pairs, flipped
Total Fibers, quantity – 2
MPO Cable Assemblies

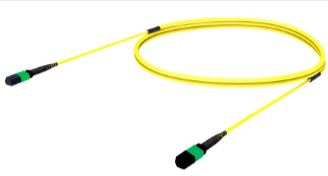

Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly, 12-Fiber, Method A, Plenum
General Specifications
Color, boot A – Black
Color, connector A – Green
Color, boot B – Black
Color, connector B – Green
Construction Type – Stranded
Furcation Color – Yellow
Interface, Connector A – MPO-12/APC Female
Interface, Connector B – MPO-12/APC Female Jacket
Color – Yellow
Polarity – Method A
Fibers per Subunit, quantity – 12
Total Fibers, quantity – 12

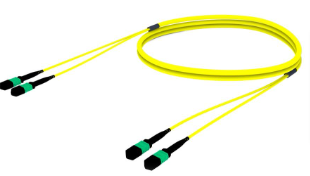

Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly, 24-Fiber, Method A, Plenum
General Specifications
Color, boot A – Black
Color, connector A – Green
Color, boot B – Black
Color, connector B – Green
Construction Type – Stranded
Furcation Color – Yellow
Interface, Connector A – MPO-12/APC Female
Interface, Connector B – MPO-12/APC Female Jacket
Color – Yellow
Polarity – Method A
Fibers per Subunit, quantity – 12
Total Fibers, quantity – 24

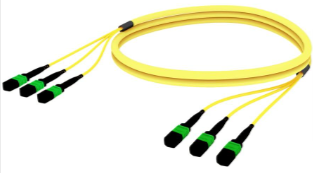

Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly, 36-Fiber, Method A, Plenum
General Specifications
- Color, boot A – Black
- Color, connector A – Green
- Color, boot B – Black
- Color, connector B – Green
- Construction Type – Stranded
- Furcation Color – Yellow
- Interface, Connector A – MPO-12/APC Female
- Interface, Connector B – MPO-12/APC Female Jacket
- Color – Yellow
- Polarity – Method A
- Fibers per Subunit, quantity – 12
- Total Fibers, quantity – 36
Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly, 48-Fiber, Method A, Plenum
General Specifications
- Color, boot A – Black
- Color, connector A – Green
- Color, boot B – Black
- Color, connector B – Green
- Construction Type – Stranded
- Furcation Color – Yellow
- Interface, Connector A – MPO-12/APC Female
- Interface, Connector B – MPO-12/APC Female Jacket
- Color – Yellow
- Polarity – Method A
- Fibers per Subunit, quantity – 12
- Total Fibers, quantity – 36

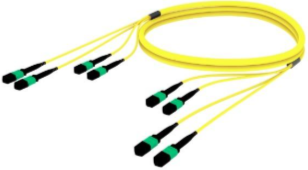

Singlemode MPO12 (Unpinned) to MPO12 (Unpinned), Fiber Trunk Cable Assembly, 72-Fiber, Method A, Plenum
General Specifications
- Color, boot A – Black
- Color, connector A – Green
- Color, boot B – Black
- Color, connector B – Green
- Construction Type – Stranded
- Furcation Color – Yellow
- Interface, Connector A – MPO-12/APC Female
- Interface, Connector B – MPO-12/APC Female Jacket
- Color – Yellow
- Polarity – Method A
- Fibers per Subunit, quantity – 12
- Total Fibers, quantity – 72
Telephone cables

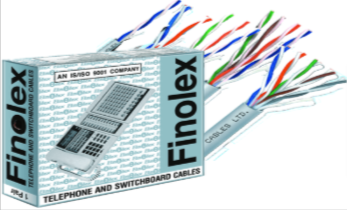

Polyethylene Insulated 0.4mm
Feature
- 1-Piece 90 Meter
- G/WIR-06/02 May 94
- A nylon ripcord is provided for slitting the jacket without damaging the insulated cores
- The outer sheath is FR PVC in grey colour
- Cable Type: 0.4 mm x 1Pair
- Box Dimension: 175 x 175 x 62
Specification
- Power – Low Power Loss.
- Signal Clarity – Low Crosstalk.
- Safety – Fire Retardant Jacket.
- Low Signal Loss – Low Attenuation.
- Electrical Parameters – 0.4 mm Dia.
- 1.Conductor Resistance (max.) ohms/km at 20 C – 143.0
- 2.Mutual Capacitance (max.) nf/km – 50
- 3.Insulation Resistance in Air (min.) M-ohms/km – 10.000
- 4.Capacitance Unbalance Pair to Pair (max.) pF/km – 25
Polyethylene Insulated 0.5mm
Feature
- 1-Piece 90 Meter
- G/WIR-06/02 May 94
- A nylon ripcord is provided for slitting the jacket without damaging the insulated cores
- The outer sheath is FR PVC in grey colour
- Cable Type: 0.5 mm x 1Pair
- Box Dimension: 175 x 175 x 62
Specification
- Power – Low Power Loss.
- Signal Clarity – Low Crosstalk.
- Safety – Fire Retardant Jacket.
- Low Signal Loss – Low Attenuation.
- Electrical Parameters – 0.5 mm Dia.
- 1. Conductor Resistance (max.) ohms/km at 20 C – 143.0
- 2. Mutual Capacitance (max.) nf/km – 50
- 3. Insulation Resistance in Air (min.) M-ohms/km – 10.000
- 4. Capacitance Unbalance Pair to Pair (max.) pF/km – 250
LAN Cables
UTP - 4 Pair CAT - 5E
Feature
- 24 AWG Annealed Bare Solid Copper Conductor
- High Density Polyethylene Insulation
- Fire Retardant PVC Sheath
- ANSI/TIA-568C.2,
- Temperature Rating – 60°C
- CMX As per UL 1581 (VW-1)
Specification
- Electrical Performance – (At 100MHz)
- Impedance – 100 ± 15 Ω
- (NVP) Velocity of Propagation – 65% min @ 100Mhz
- Delay Skew – 45 ηs / 100mtrs. @ 20°C max.
- Propagation Delay – 538 ηs / 100mtrs. @ 100 MHz @ 20°C max.
- DC Resistance – 9.38 Ω / 100mtrs @ 20°C max
- Mutual Capacitance – 5.60 ηf / 100mtrs. max.
UTP - 4 Pair CAT - 5E
Feature
- 24 AWG Annealed Bare Solid Copper Conductor
- High Density Polyethylene Insulation
- Fire Retardant PVC Sheath
- ANSI/TIA-568C.2,
- Temperature Rating – 60°C
- CMX As per UL 1581 (VW-1)
Specification
- Electrical Performance – (At 100MHz)
- Impedance – 100 ± 15 Ω
- (NVP) Velocity of Propagation – 65% min @ 100Mhz
- Delay Skew – 45 ηs / 100mtrs. @ 20°C max.
- Propagation Delay – 538 ηs / 100mtrs. @ 100 MHz @ 20°C max.
- DC Resistance – 9.38 Ω / 100mtrs @ 20°C max
- Mutual Capacitance – 5.60 ηf / 100mtrs. max.
